CARBURETTOR REPAIR KIT - GT750 (PATTERN)

DESCRIPTION: Carburettor repair kit. Contains starter valve plunger, starter valve spring, starter valve gasket, needle (Y48 = 4DN18-3), needle 'E' ring, needle valve and washer, pilot jet (47.5), main jet (110), plug screw gasket, float bowl gasket, gasket for plate on right hand carb.

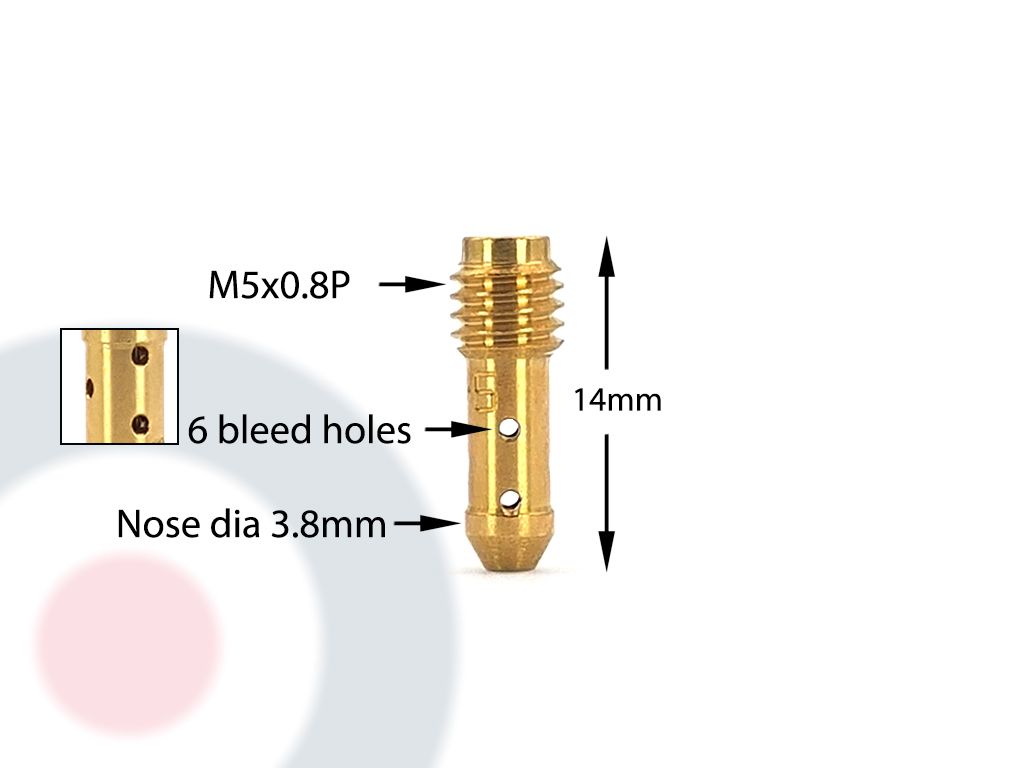

Some M and A models may need a #45 pilot jet.

This is a quality kit, made in Japan. Not to be confused with some of the inferior kits available from ebay.

For starter valve cap and alternative jets, see below. These are at extra cost.

Please note that you will have to ensure that the jetting is suitable for your machine. Suzytwo will not be responsible for any damage caused by incorrect jetting on your machine as a result of using this kit. All jetting specifications are from Suzuki parts catalogues, based on stock engines.

CONDITION: New, pattern parts kit. Made in Japan.

PART NUMBER: 220465P / CAB-ES11 / 13200-31210.

FITS MODEL(S): GT750 L TO B.

MODEL YEARS AND DATES ARE APPROXIMATE

Please note that we have tried our best to indicate the correct model and model year, but it could be wrong. Please check that the part number is suitable for your machine before you order.
